testo 510 set - differential pressure measuring instrument
Product no. 0563 0510
Differential pressure measurement on gas hot water heaters or on filters of air conditioning systems, and also flow measurements in ventilation ducts using a Pitot tube: the compact testo 510 differential pressure measuring instrument, which comes with a silicone connection hose and other useful accessories, can help you maintain and install systems in the sanitary and HVAC sector.
Your advantages
Differential pressure measurement from 0 to 100 hPa

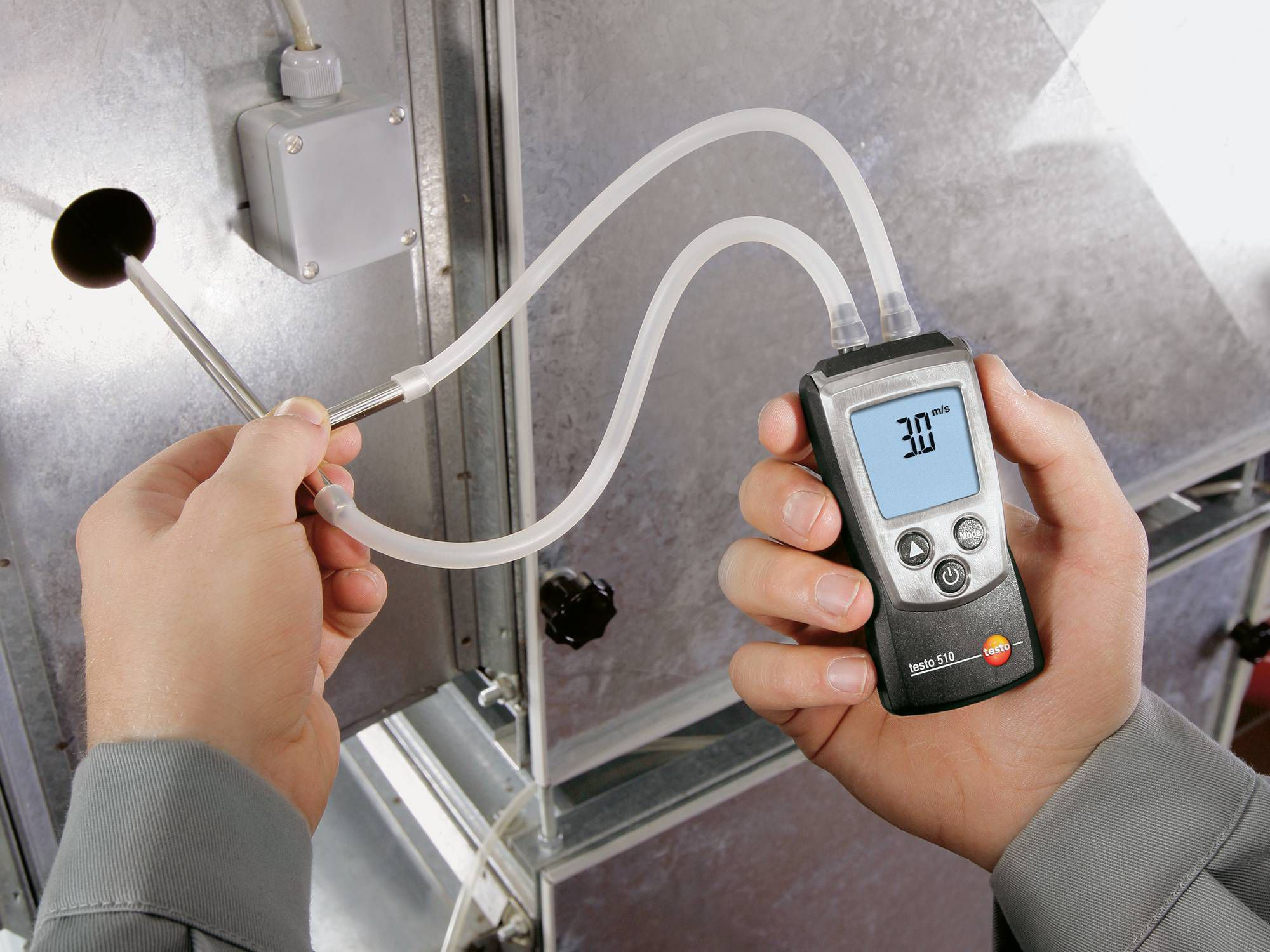

Flow measurement possible with a Pitot tube (available as an option)
Magnets on the rear allow hands-free work
10 units to choose from, display in pascals can be selected
The following units can be selected on the testo 510 differential pressure measuring instrument:
Pa, hPa, mbar, mmH2O, mmHg, inH2O, inHg, psi, m/s, fpm
General technical data
Dimensions 119 x 46 x 25 mm |
Operating temperature 0 to +50 °C |
Protection class IP40 |
Seceltable units hPa, mbar, Pa, mmH2O, inH₂O, inHg, mmHg, psi, m/s, fpm |
Maximal static pressure 500 mbar |
Measuring rate 0.5 s |
Battery type 2 AAA micro batteries |
Battery life 50 h (average, without display illumination) |
Storage temperature -40 to +70 °C |
Weight 90 g (with batteries and protective cap) |
· Differential Pressure - Piezoresistive
Measuring range 0 to 100 hPa |
Accuracy ±0.03 hPa (0 to 0.30 hPa) ±(0.1 hPa + 1.5 % of mv) (1.01 to 100 hPa) ±0.05 hPa (0.31 to 1.00 hPa) |
Resolution 0.01 hPa |
Testo 510 differential pressure measuring instrument
Datasheet
